Large Laser Engraving Cutting Machine
Large Laser Engraving Cutting Machine

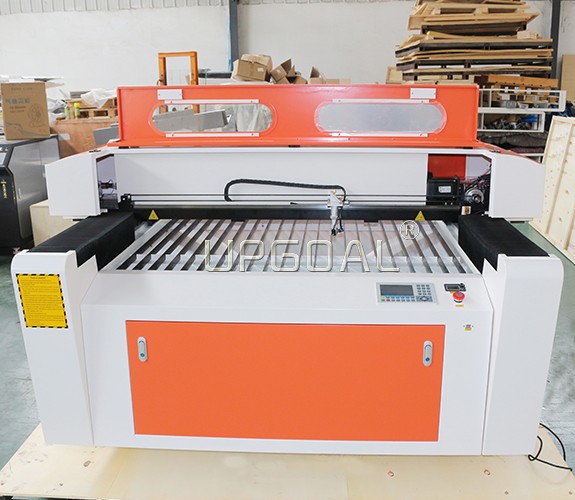

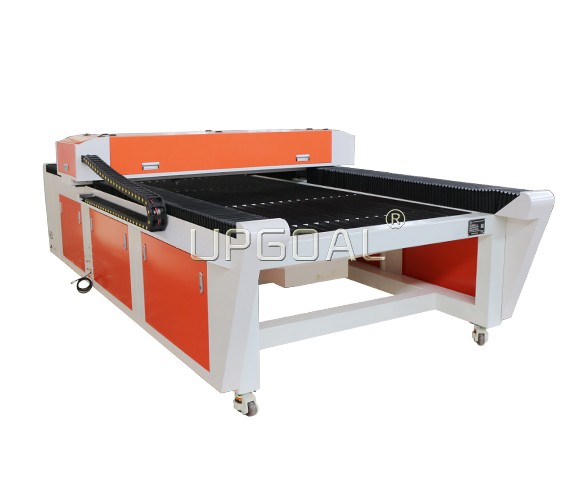

W8 150W Large 1300*2500mm Co2 Laser Cutting Machine

Brief Introduction:

Model: UG-1325L
1300*2500mm working area
Reci W8 150W-180W Co2 laser tube
RuiDa RDC 6445S control system
Industrial chiller CW-6000 cooling
Leadshine hybrid servo motor driver

INQUIRY NOW

Applications

Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia,  lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.


Features

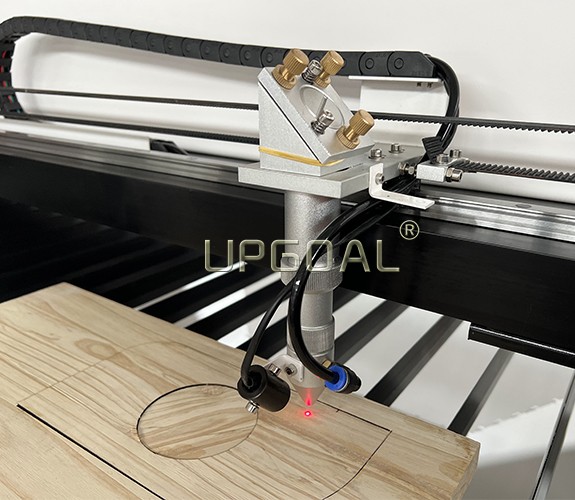

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

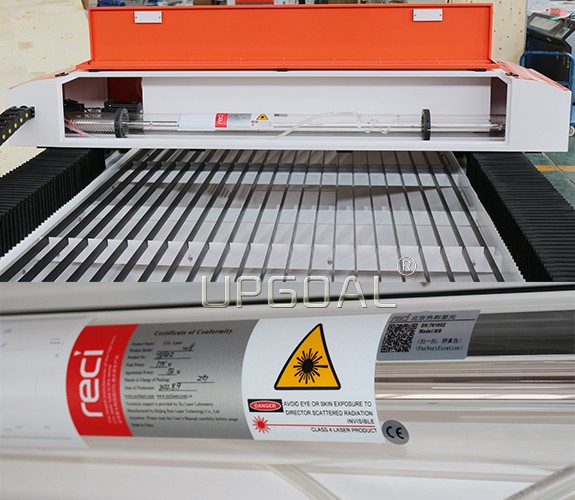

Laser Tube

Adopted famous Reci W8 150W-180WCo2 laser tube, rated power: 100W, peak power: 130W, long time time and stable

Working Table

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear andTaiwan CSK linear guide rails and blocks with 3M belt ensured stable transmission, lower noise

Driving system

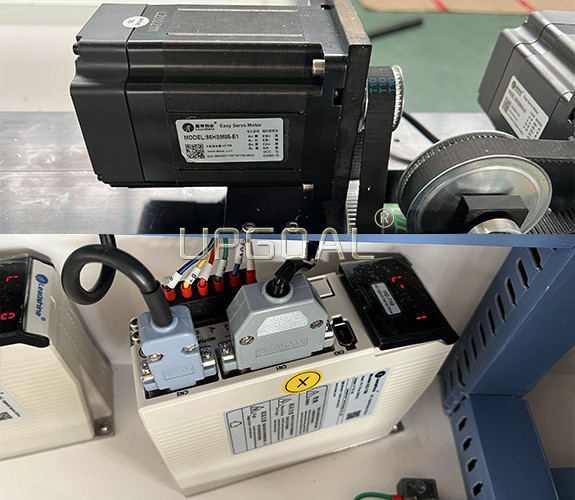

Adopted China Leadshine hybrid servo motor and driver H2-758,  high precision, fast speed and more stable.

Operation System

Advanced USB port RuiDa RDC6445s control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Large Industrial chiller CW-6000cooling(Teyu S&A), ensuring the laser tube long time continus working


Effective working area

1300*2500mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

150W-180W (Reci W8)

Working table

Knife strip

Driver mode

Hybrid servo motor driver H2-758( Leadshine)

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

3M Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa RDC6445S

Control software

RDWorksV8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-6000 cooling(Teyu S&A)

Water protection system

Yes

Blow-off system

Air pump and air blower

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLT、DST、DXF、BMP, DWG、AI、LAS,etc

Voltage

AC220V/110V, 50/60Hz, single phase

Certificate

CE/FDA
